All Black 60 Cell Monocrystaline Module
305W / 6MB SERIES / 300W-310W
Monocrystalline photovoltaic module with high power, is applied to the ground station can be saved PV combiner box BOS cost, direct current cable, brackets, installation of photovoltaic field area, intensive use of land, especially for mountain, water and other application conditions and with the tracking bracket.

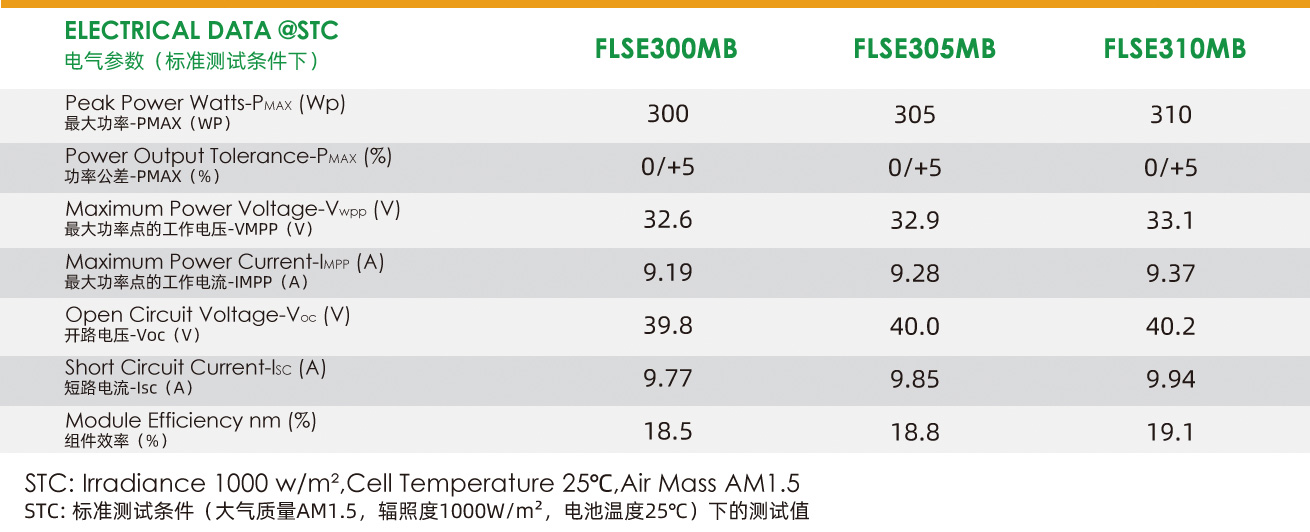

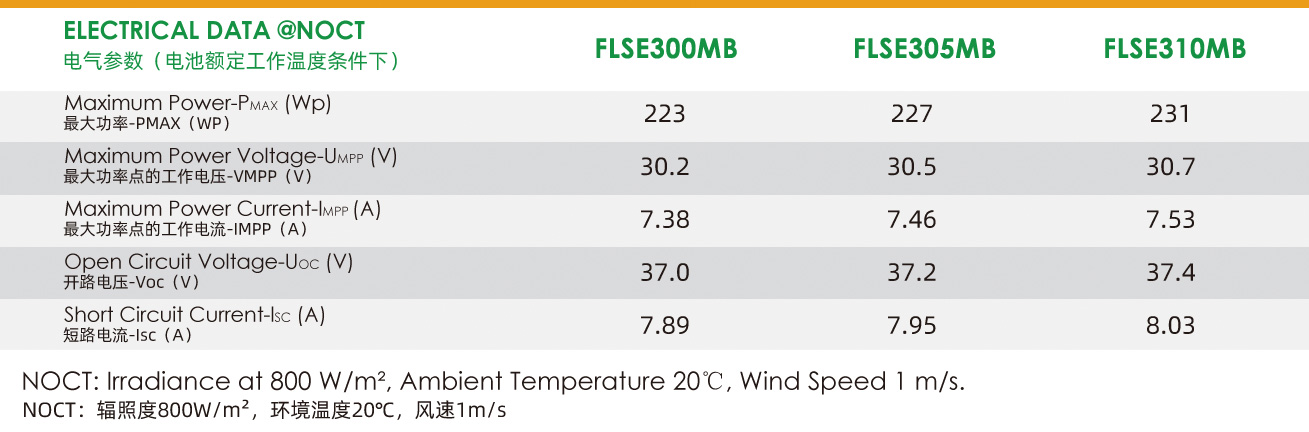

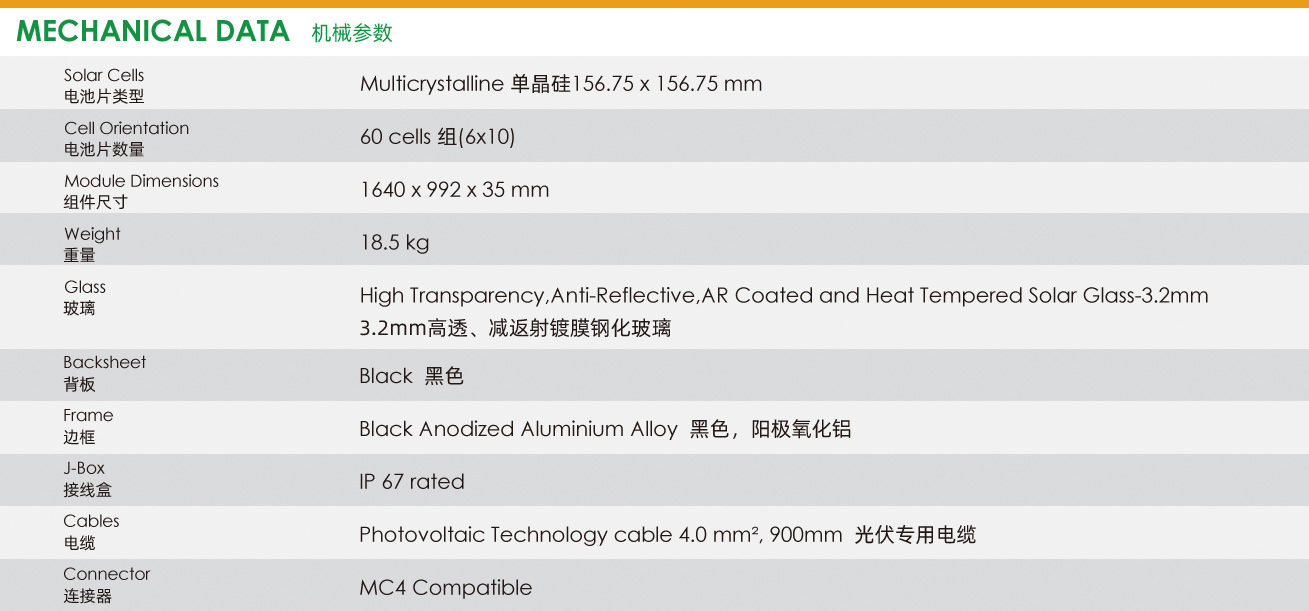

Component parameters
60
CELL
Monocrystaline Module
描述
300-310
W
Power Output Range
描述
19.1
%
Maximum Efficiency
描述
0~+5
%
Positive Power Tolerance
描述
描述
Maximize Limited Space with top-end efficiency
Up to 165 W/m² power density

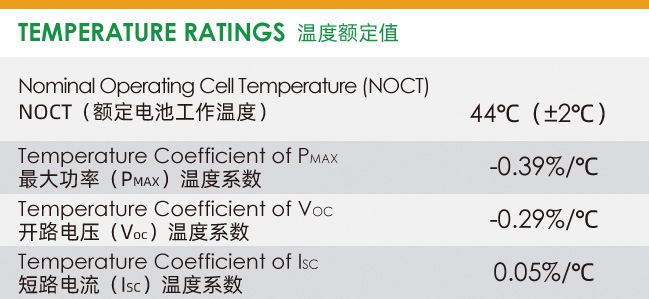

Low thermal coefficients for greater energy production at high operating temperatures
描述
Good aesthetics for residential applications
Dark mono cells
Black frame
描述
Excellent low light performance on cloudy days, mornings and evenings
Advanced surface texturing
Back surface field
Selective emitter
描述
Highly reliable due to stringent quality control
All modules have to pass electroluminescence (EL) inspection
Over 30 in-house tests (UV, TC, HF, and many more)
In-house testing goes well beyond certification requirements
PID resistant
描述
Certified to withstand challenging environmental conditions
35 mm hail stones at 97 km/h

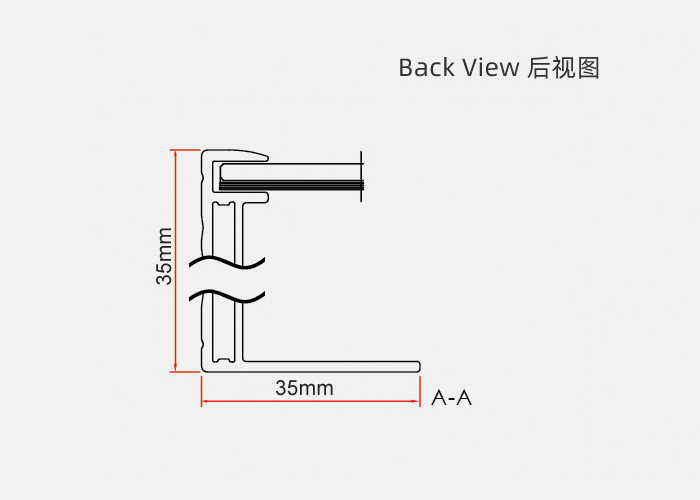

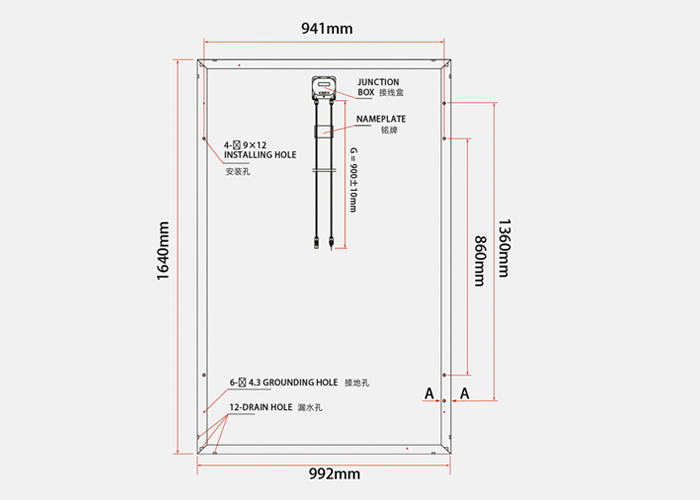

Component size
